Send stereo and multichannel bin files directly, via Ethernet, into WJA Studio Monitors with just one click. Including time alignment and gain. With continuity of dynamics, spatial dimension, eq and phase. Suitable for 2.0 right through to 9.1.6 multichannel bin files. (read more)

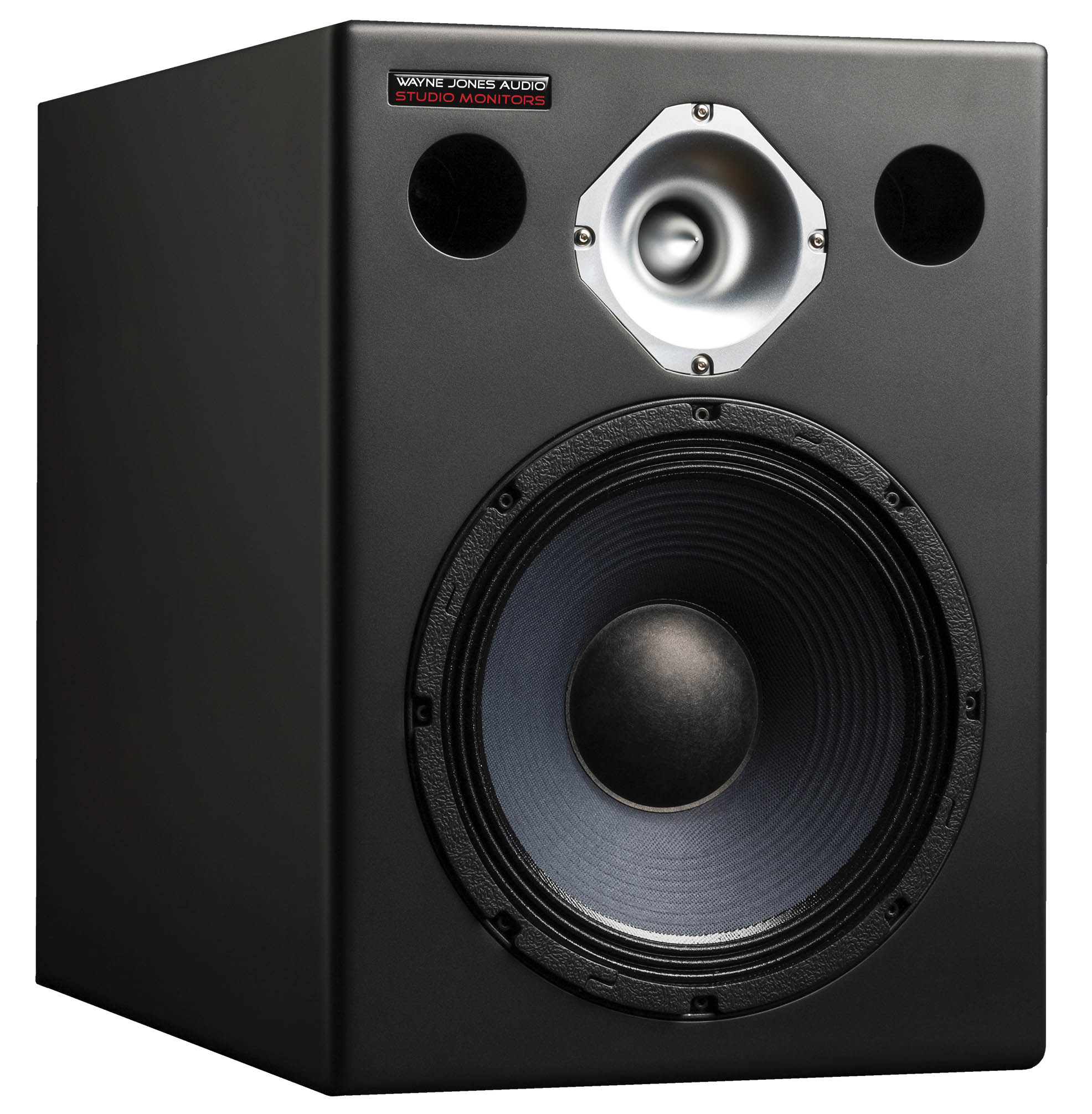

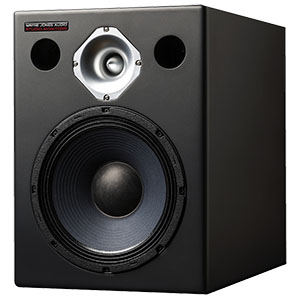

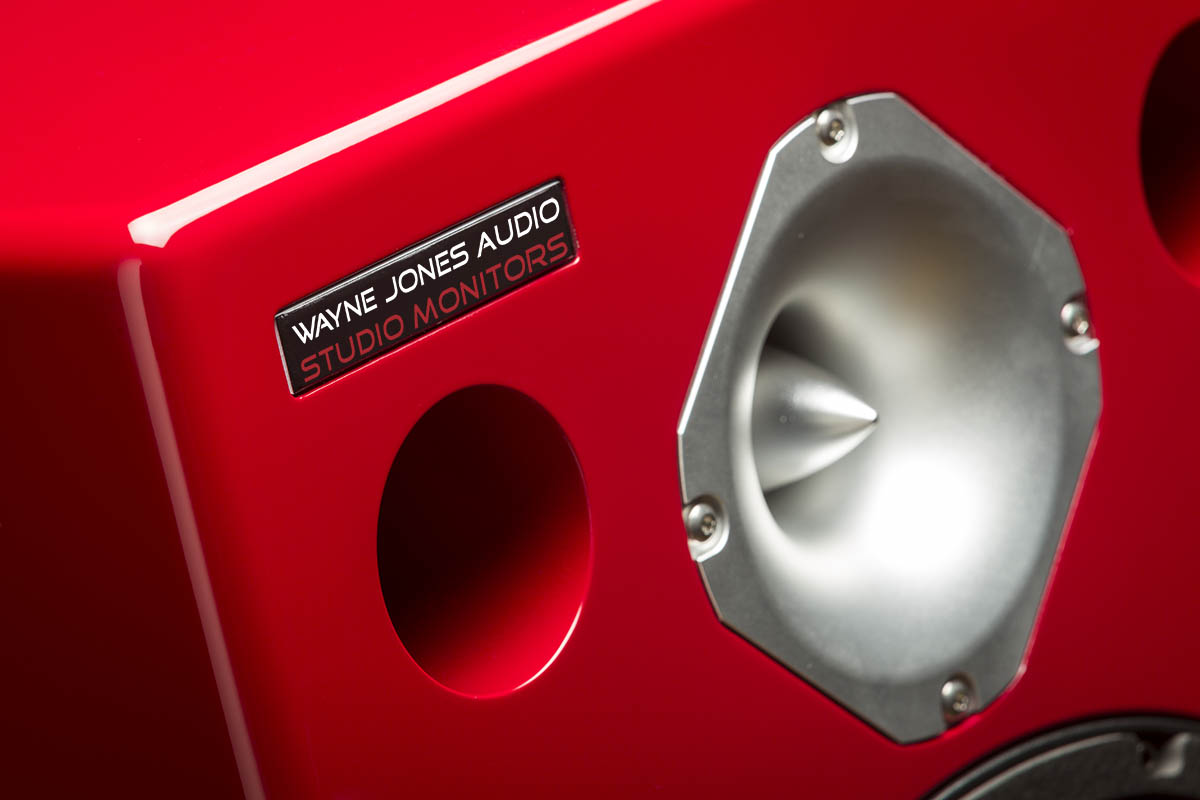

High powered, mid/near-field 2-way studio monitor. Custom handmade 10” bass-mid driver, Kevlar impregnated eucalyptus pulp air-dried cone. Bullet-style machined aluminium tweeter with a 1.46" voice coil. State of the art D Class switch mode power amp, 192 K SHARC DSP.
For ultimate excellence in recording studios. Stunning Frequency Response, Incredible phase & time alignment. Undeniably Accurate, Faultless Frequency Reproduction, Incredible Depth, Clarity & Dimension.
- Stunning frequency response
- Incredible accuracy
- In phase with world leading transient response, allowing hyper accurate compression settings within the mix
- Faster mix times
- Less changes
- Virtually no cross referencing
- 650 Watts of power per Monitor
- 35 Hz to 20 kHz flat
- A bass response more musical than any sub combination
Click Images For Gallery View

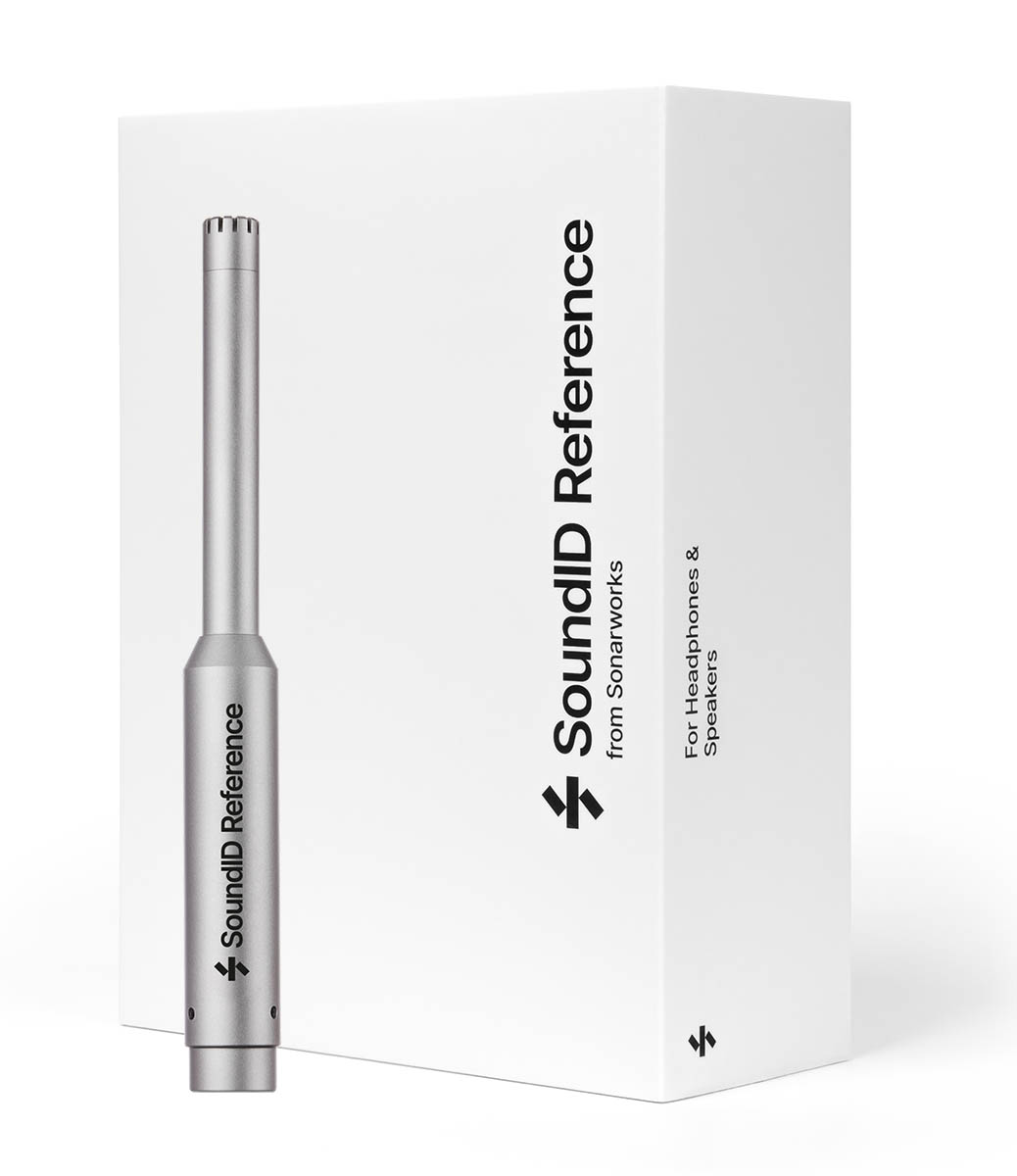

Packaged with SoundID Reference & Microphone From Sonarworks
The Wayne Jones Audio Studio Monitors are incredibly accurate in all areas. For potential room acoustic issues we bundle SoundID Reference with mic from Sonarworks measurement and correction program.
SoundID Reference from Sonarworks is for room acoustic issues and not a simple fix for lessor quality speakers. It always starts with the source and the Wayne Jones Audio Studio Monitors, with their incredible flat response, are significantly the most advanced source currently available. Combined with Sonarworks' SoundID Reference measurement the ultimate perfection for any room is secured.
SoundID Reference from Sonarworks includes:
- SoundID Reference Measure - step-by-step guide
- XREF20 calibration microphone with individual calibration curve - the mic alongside SoundID Reference Measure guarantees maximum precision
- SoundID Reference Systemwide - Sonarworks SR applied to all audio output
- SoundID Reference Plugin - zero latency in your DAW
- Headphone profiles - See the list of supported models here:
www.sonarworks.com/reference/headphones
Wayne Jones Audio Studio Monitors in partnership with Sonarworks SoundID Reference
How to export a
Sonarworks’ SoundID Reference
room measurement profile
for uploading into
Wayne Jones Audio Studio Monitors
How to export a Sonarworks SoundID Reference room measurement profile for Wayne Jones Audio Studio Monitors.
Industry Reviews
Wayne Jones Audio 10-inch 2-way active Studio Monitors
(Tape Op Magazine Product Review - April/May 2023 No. 154 Edition)
I can say that these are impressive speakers on every level. The low frequency is solid, fast, and useable down to 30 Hz, providing a depth and clarity of low end instruments that I haven’t heard on any other near or midfield 2-way system. The overall response of these monitors is incredibly detailed and musical. Powerful dance kick drums seem to punch at the listener from between the speakers, while reverb tails and stereo information are naturally represented and easy to understand. Read More ►
Buy Magazine: https://tapeop.com/issues/154/
Wayne Jones Audio Reds - Active Monitors With Sonarworks Room Correction
How do you make a great monitor even better? By integrating Sonarworks’ acclaimed SoundID Reference room correction system!
My high opinion of the Wayne Jones Audio 10‑inch, two‑way monitors from my original review remains unchanged. However, this integration with SoundID Reference room analysis and correction software can take their real‑world, in‑room performance to another level, which means that these are monitors that you really, really should audition if you have the space and budget to accommodate them. Read More ➤
Produce Like A Pro – Review and Interview for Wayne Jones Audio Studio Monitors
“They sound absolutely beautiful, congratulations”
“these have got that really clean power …this is a characteristic of the very best speakers”
~ Warren Huart (Produce Like A Pro ), multi-platinum producer for the likes of The Fray, Korn, Better Than Ezra, James Blunt, Ramones, Matisyahu, Ace Frehley, Aerosmith and Howie Day.
Sound On Sound Editors' Pick for Gear Of The Year 2019
Wonderful recognition from the editors of Sound On Sound Magazine, the Wayne Jones Audio Studio Monitors have been selected as a Editor's Pick for Gear Of The Year 2019.
Nominated in the Prestigious SOUND ON SOUND Global Reader Awards
Sound On Sound Magazine NAMM 2020 Interview
SOUND ON SOUND - Glowing Product Review
"The World's Premier Music Recording Technology Magazine"
Read Full Review on Sound On Sound website ➤
I began my listening tests with ‘Njotke’ from the CD Spes by the Norwegian amateur all-female choir Cantus and singer/keyboardist Frode Fjellheim… I know this track exceedingly well and I am not exaggerating when I say that the hair stood up on the back of my neck whilst listening to it through the Wayne Jones Audio studio monitors. The level of detail that these monitors revealed in that recording went well beyond that of any other loudspeaker that I have heard it on before. Read More ►
~ Tim Hands
(ADR Engineer. 4 time Emmy Award winner, 9 nominations for Game Of Thrones & The Life And Death Of Peter Sellers)
“Working with my Wayne Jones Audio Reds it’s as if a veil has been lifted from my listening experience. They present such fine detail in the production dialogue and the ADR that I edit, and with such clarity and depth, it feels as though my studio has instantly been turned up to eleven! Now I get to hear tracks in my own room the way I hear them on a big sound stage. Brilliant I tell you, just brilliant!”
~ Krish Sharma
(Rolling Stones Recording Engineer)
“I knew I had to have them, the Wayne Jones Audio Studio Monitors are hands down my new favorite monitors. After hearing these I tracked down the manufacturer unsolicited.”
Don Was (Producer) & Krish Sharma (Rolling Stones Recording Engineer)
Wayne Jones Audio Studio Monitors now in Universal Music Studios South Africa
with Joseph And George Mothiba (REVOLUTION)
"Man these speakers should come with a warning! "Sound quality so good, you won't be able to walk away from them!""
Continued in "Read More" link below along with more reviews.
Read More ►
Comments from Recording & Movie Studios in USA
"These monitors have the world’s next level in transients"
"I have never experienced anything like this before"
"The clarity & separation is incredible, I can focus on any Instrument clearly"
"I can hear things in the production that I never knew existed"
"Listen to the Reverb"
"I just can’t stop listening to them"
Our Conclusions
Undeniably Accurate, Faultless Frequency Reproduction, Incredible Depth, Clarity & Dimension.
You will hear Compression & Reverb tails more accurately than you have never heard before.
A whole new level of Transients, Clarity & Distinction.
All this at high & low listening levels.
Our first version intentionally had no DSP. This ensured the system and all components were doing exactly what they should from the source itself. Some companies use DSP to make up for the lack of what the source can’t produce, you can hear that. It simply doesn’t sound right and is misleading.
With the addition of DSP we have fine-tuned the original high praised system to perfection.
Finally, as an engineer, producer or artist your mixes can now be "undeniably accurate" and your work "more enjoyable". This will translate right down the line through to clients and end consumer.
Even when listening to recordings you know well, you will discover things you never knew existed until now.
The Wayne Jones Audio monitors, gives you a whole new listening experience, transporting you into the very essence of musical dimension.

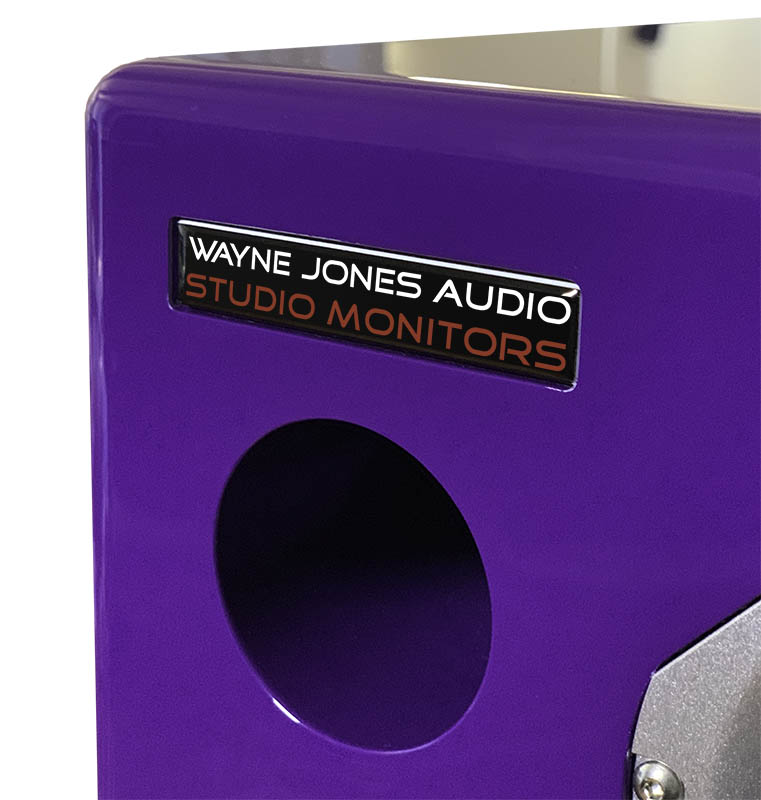

Cabinet Specs

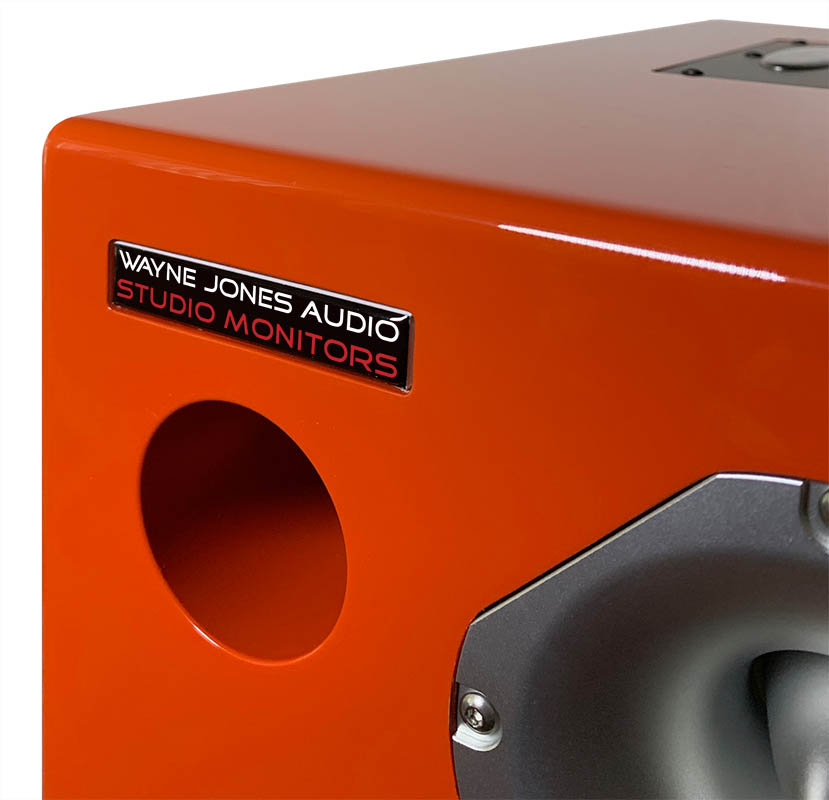

- Finish - Stunning 2 Pak Automotive paint finish with high gloss clear coats

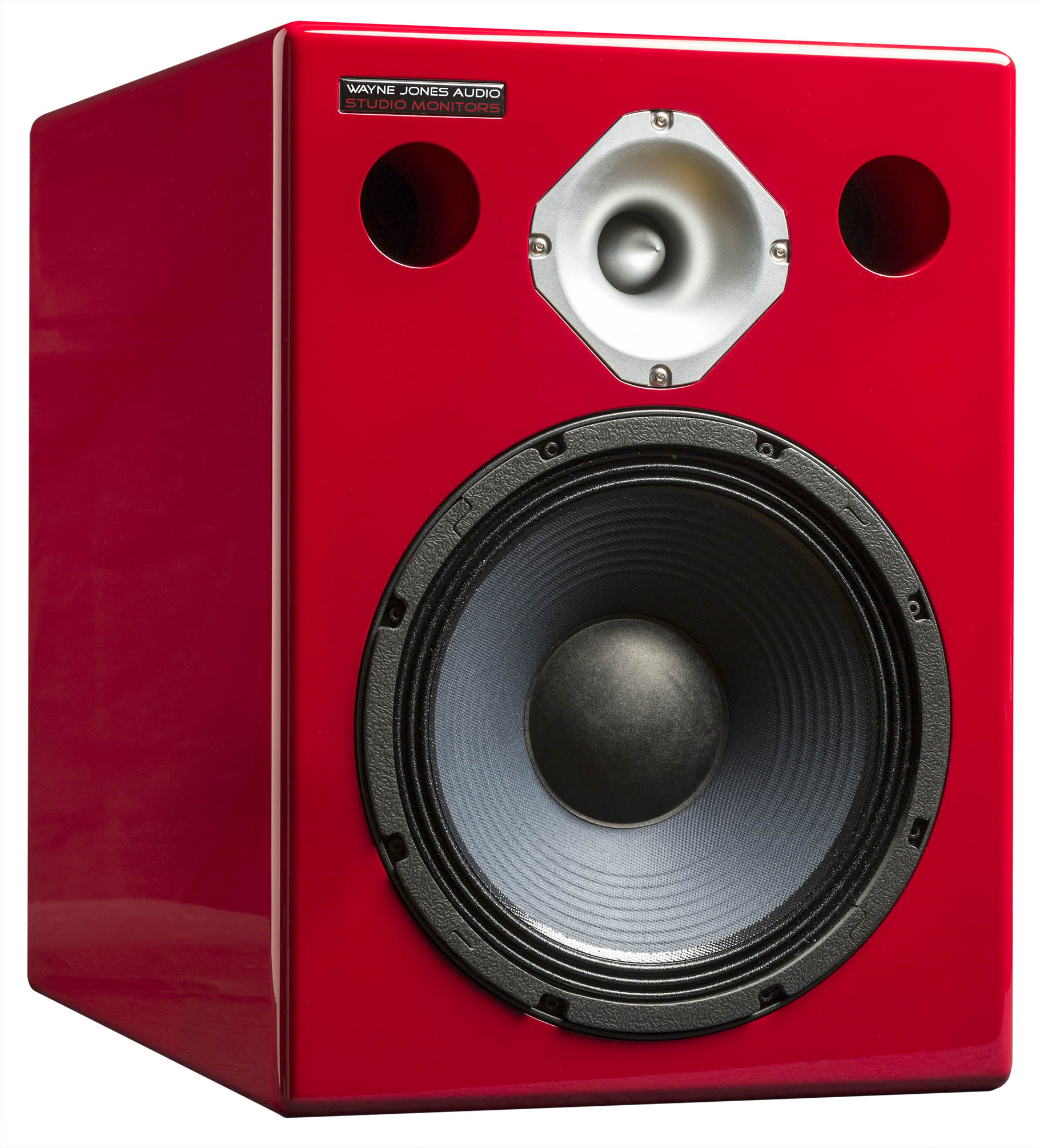

- Standard finish is red

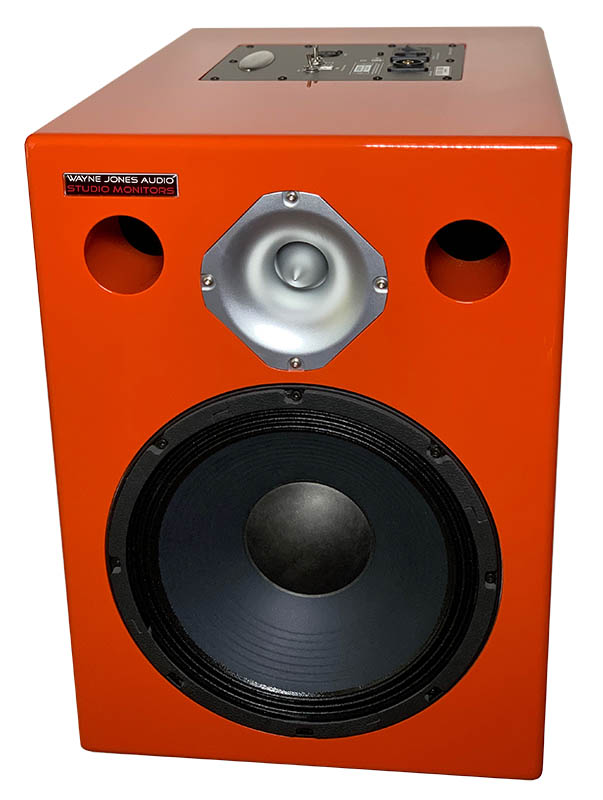

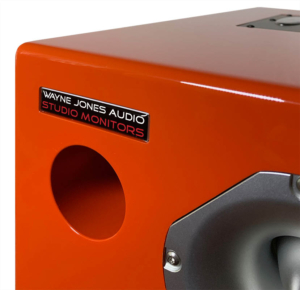

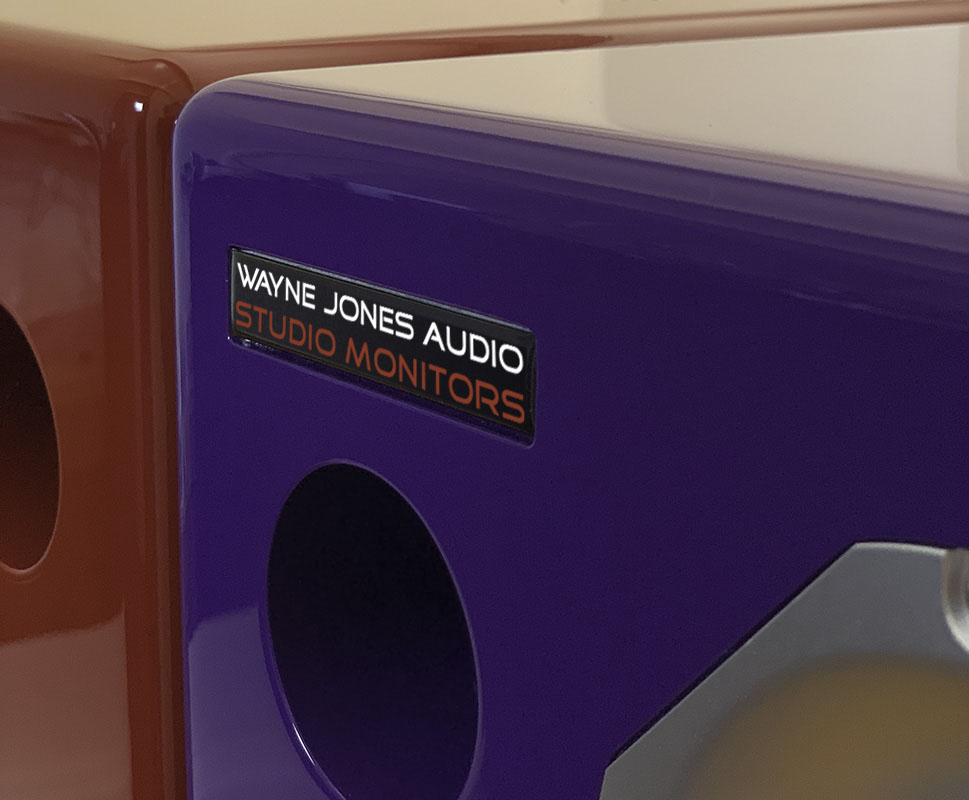

- Available in custom colours. Match your décor, order your preferred colour
- Woodwork 18mm MDF
Cabinet Specs - for each cabinet:
- Power: 650 Watts RMS powered
- Channel 1 Bass-Mid: 500 Watts RMS @ 4 ohms
- Channel 2 Tweeter: 150 Watts RMS @ 8ohms
- Power Amp: State of the art D Class switch mode 2 channel power amp with heat sink plate mounted into the rear of the cabinet
- Power Amp frequency: 20 Hz – 20 kHz
- Cabinet tuning: 35 Hz to 20 kHz
- Cabinet response: Half loudness Graphed down to 28Hz
- HPF switch at 30 Hz
- Driver: Custom made Wayne Jones 10” driver with Aluminium cast frames, specially formulated Kevlar impregnated eucalyptus pulp cone.
- Voice coil: 3"
- Magnet: Massive Ferrite
- Tweeter: 1.46” Voice coil
- Crossover point: 2.4 kHz
- Control plate: Black Steel
- Universal Mains Power in: Standard IEC

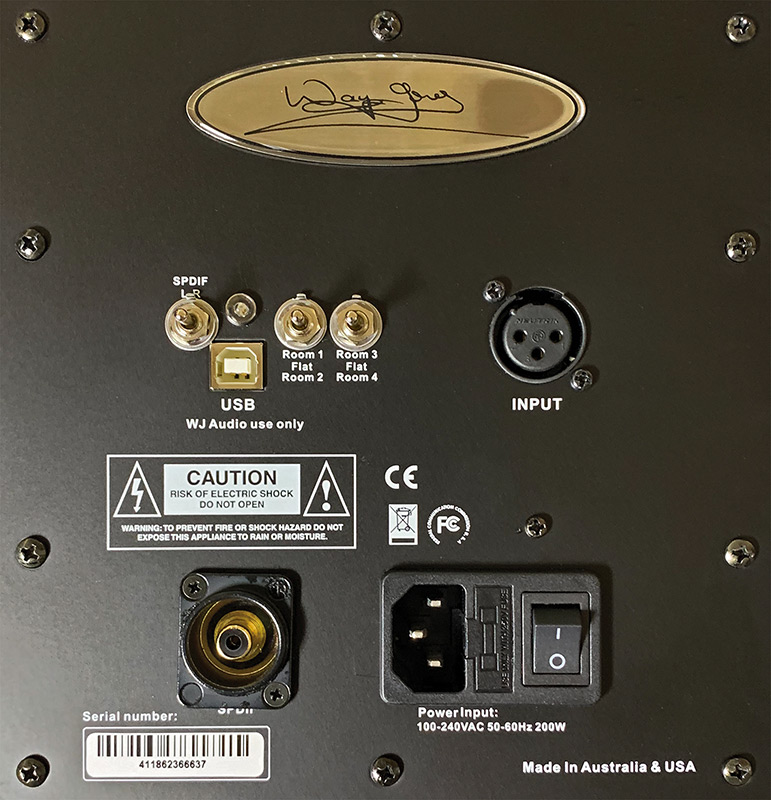

DSP & Control Plate Features
- Inputs: XLR Analogue Balanced
- DSP - 192K SHARC processing
- USB connector for WJ Audio use only. Used for software updates
- Ethernet connection for SoundID Reference calibration file uploads
- 3 Toggle switches with selections (centre position is Flat – undeniably accurate)
- Inputs: XLR Analogue (center position mutes monitor)
- Room 1: Inactive. For future development /
Room 2: SoundID Reference calibration (preloaded with test profile) - Room 3: Inactive. For future development /
30Hz HPF
- LED on Control Panel for power operation
Single Monitor Dimensions:
- 33 x 45 x 50 cm
- 13 x 18 x 20 inches
Single Monitor Weight:
- 26.2 kg
- 58 lbs
Shipping Dimensions & Weights:
Shipped as a pair on a 1/2 size pallet (included in shipping weight & dimensions)
Carton - Double thickness cartons lined with high density die cast foam for ultimate protection.
W 60 x H 66 x D 80 cm = Total 206 cm (23.6 x 26 x 31.4 Ins)
61 kg / 135 lbs
Ordering
As these are custom & hand made in Australia. If not in stock there could be a wait time of up to 8 weeks from time of order
Payment
50% required at time of order with balance payable when ready to ship
International shipping is by DHL Express
Shipping & local duties & taxes are the customers responsibility
Warranty is 3 year limited on all parts & Labour
