Send stereo and multichannel bin files directly, via Ethernet, into WJA Studio Monitors with just one click. Including time alignment and gain. With continuity of dynamics, spatial dimension, eq and phase. Suitable for 2.0 right through to 9.1.6 multichannel bin files. (read more)

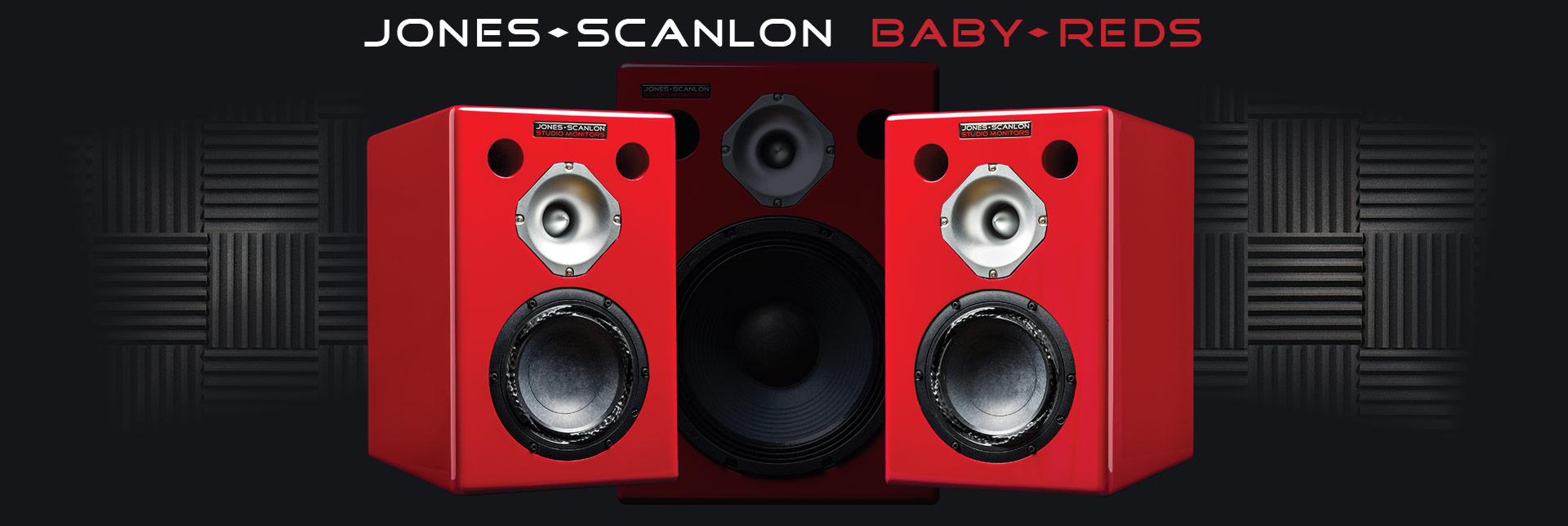

Wayne Jones Audio Baby Reds – “When Size Really Matters”
Perfect size for Broadcast Vehicles & Home Studios
High powered, mid/near-field 2-way studio monitor. 6.5, long stroke, ultra-low distortion driver with incredible clarity, musical with unbelievably tight low end reproduction. Bullet-style machined aluminium tweeter with a 1.46” voice coil. State of the art D Class switch mode power amp, 192 K SHARC DSP.
For ultimate excellence in recording studios. Stunning Frequency Response, Incredible phase & time alignment. Undeniably Accurate, Faultless Frequency Reproduction, Incredible Depth, Clarity & Dimension.
Sound On Sound Magazine Review (Aug 2020):
“The Baby Red […] plays a remarkable trick of sounding huge”
“It has enormous authority and clarity and displays all the subjective qualities of a much larger monitor working well within its limits”
“Reverb tails, compression artifacts and imaging qualities
are all startlingly clear”
“The Baby Red is unique, and impossible not to love”
~ PHIL WARD ( All QUOTES FROM Sound On Sound Magazine review, August 2020 ►
A note from Wayne Jones Audio addressing review points:
Tweeter Orientation
The Baby Reds are optimised for time alignment at the 1.5 metre listening spot. They are designed for small studios and the exacting requirements of OB trucks, where close environments create different listening/eq responses when monitors are used on their side or standing upright.
Port Flaring
Non flared ports compress earlier, providing attack that is accurate & highly beneficial during mix judgements. Even to the point of feeling air movement from ports when assessing low frequency.
SoundID Reference & Microphone From Sonarworks
The Wayne Jones Audio Studio Monitors are incredibly accurate in all areas. For potential room acoustic issues we bundle SoundID Reference with mic from Sonarworks measurement and correction program. Read More ►
Cabinet Specs
- Finish – Stunning 2 Pak Automotive paint finish with high gloss clear coats
- Colour – Red or Graphite
- Available in custom colours. Match your décor, order your preferred colour
- Woodwork 18mm MDF
Cabinet Specs – for each cabinet:
- Power: 650 Watts RMS powered
- Channel 1: Bass-Mid – 500 Watts RMS @ 4 ohms
- Channel 2: Tweeter – 150 Watts RMS @ 8ohms
- Power Amp: State of the art D Class switch mode 2 channel power amp with heat sink plate mounted into the rear of the cabinet
- Power Amp frequency: 20 Hz – 20 kHz
- Cabinet tuning: 35 Hz to 20 kHz
- Cabinet response: Half loudness Graphed down to 28Hz
- HPF switch at 30 Hz
- Drivers: Bass-Mid 6.5 inch, long stroke, ultra low distortion with incredible clarity, musical with tight bottom end
- Magnet: Ferrite
- Tweeter: Machined Aluminium 1.46″ Voice coil, Kapton
- Crossover point: 2.25 kHz
- Control plate: Black Steel
- Universal Mains Power in: Standard IEC
DSP & Control Plate Features
- Inputs: XLR Analogue Balanced
- DSP – 192K SHARC processing
- USB connector for WJ Audio use only. Used for software updates
- Ethernet connection for SoundID Reference calibration file uploads
- 3 Toggle switches with selections (centre position is Flat – undeniably accurate)
- Inputs: XLR Analogue (center position mutes monitor)
- Room 1: Inactive. For future development /
Room 2: SoundID Reference calibration (preloaded with test profile) - Room 3: Inactive. For future development /
30Hz HPF
- LED on Control Panel for power operation
Single Monitor Dimensions:
- H39 x W25 x D34 cm
- H15.3 x W9.8 x D13.4 inches
Single Monitor Weight:
- 13 kg
- 29 lbs
Wayne Jones Audio Studio Monitors now in
Universal Music Studios South Africa
& with Joseph And George Mothiba (REVOLUTION)
“Man these speakers should come with a warning! “Sound quality so good, you won’t be able to walk away from them!”” Read More ►
Our Conclusions
- Undeniably Accurate, Faultless Frequency Reproduction, Incredible Depth, Clarity & Dimension
- You will hear Compression & Reverb tails more accurately than you have never heard before
- A whole new level of Transients, Clarity & Distinction
- All this at high & low listening levels
Our first designs intentionally had no DSP. This ensured the system and all components were doing exactly what they should from the source itself. Some companies use DSP to make up for the lack of what the source can’t produce, you can hear that. It simply doesn’t sound right and is misleading.
With the addition of DSP we have fine-tuned the original high praised system to perfection.
Finally, as an engineer, producer or artist your mixes can now be “undeniably accurate” and your work “more enjoyable”. This will translate right down the line through to clients and end consumer.
Even when listening to recordings you know well, you will discover things you never knew existed until now.
The Wayne Jones Audio monitors, gives you a whole new listening experience, transporting you into the very essence of musical dimension.
Shipping Dimensions & Weights:
Shipped as a pair on a 1/2 size pallet (included in shipping weight & dimensions)
Carton – Double thickness cartons lined with high density die cast foam for ultimate protection.
W 60 x H 50 x D80 cm = Total 190cm (23.6 x 19.7 x 31.5 in)
35 kg / 77.2 lbs
Ordering
As these are custom & hand made in Australia there could be a wait time of up to 8 weeks from time of order
Payment
50% required at time of order with balance payable when ready to ship
International shipping is by DHL Express
Shipping & local duties & taxes are the customers responsibility
Warranty is 3 year limited on all parts & Labour
Wayne Jones Audio Studio Monitors in partnership with Sonarworks SoundID Reference
How to export a
Sonarworks’ SoundID Reference
room measurement profile
for uploading into
Wayne Jones Audio Studio Monitors
How to export a Sonarworks SoundID Reference room measurement profile for Wayne Jones Audio Studio Monitors.
Resources & Wayne Jones Audio Studio Monitors Product Information
- Wayne Jones Audio Studio Monitors
- Wayne Jones Audio Studio Monitors: a new level of innovation together with Sonarworks
WAYNE JONES AUDIO STUDIO MONITORS with integrated SoundID Reference - How to measure, export & upload your SoundID Reference room calibration profile to the Wayne Jones Audio Studio Monitors
WAYNE JONES AUDIO STUDIO MONITORS SoundID Reference INSTRUCTIONS - SoundID Reference from Sonarworks
